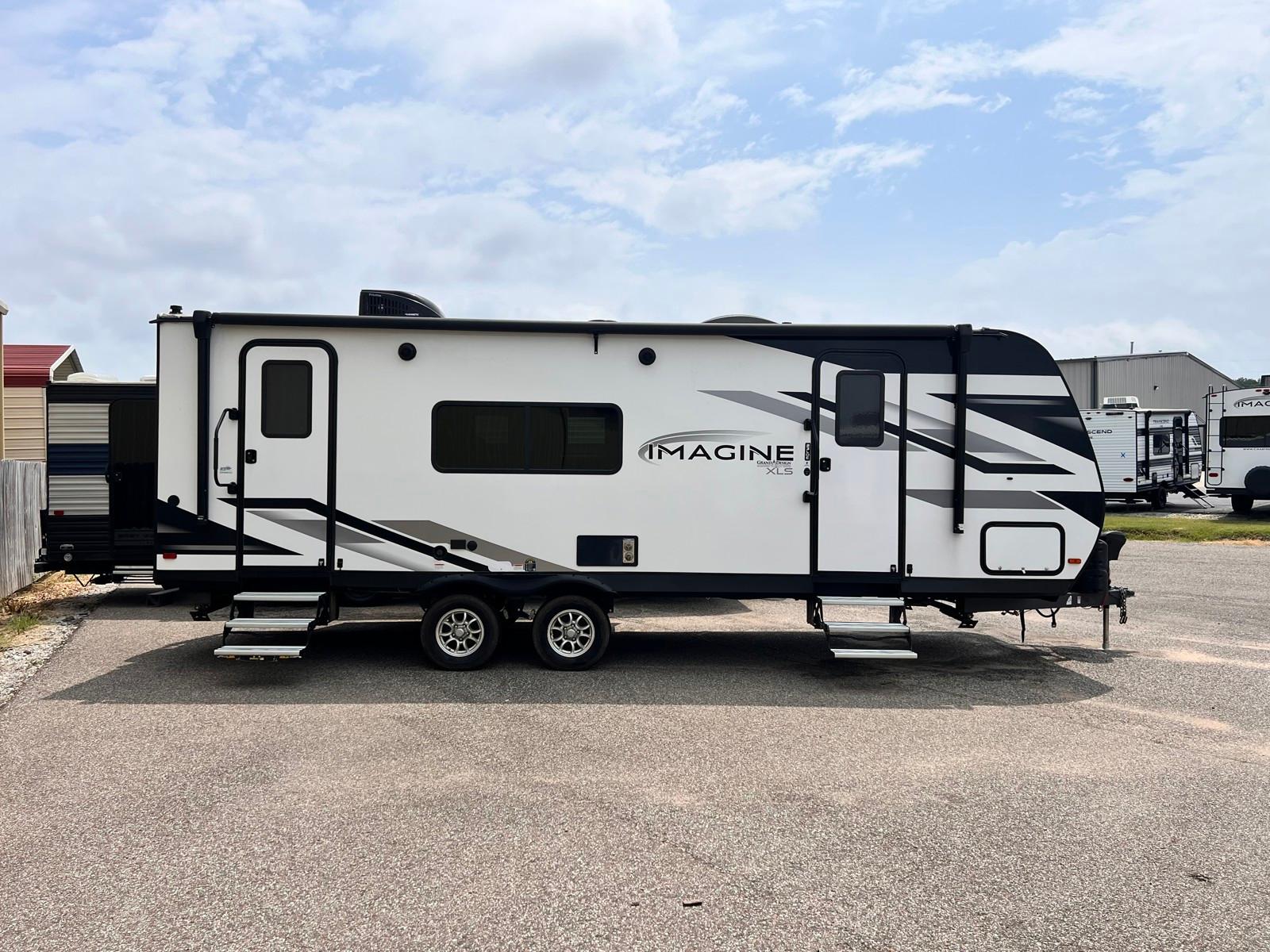

2022 Grand Design Imagine XLS 23LDE

2022 Grand Design 2022 Grand Design Imagine XLS - image 1
1 / 2
90 Day Limited Warranty

Layout & Media

Explore the floorplan, walkthrough videos

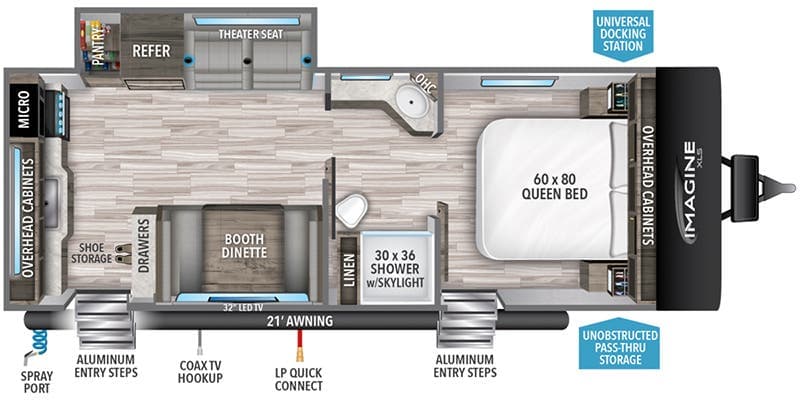

2022 Grand Design Imagine XLS 23LDE floorplan

Complete Travel Trailer Specifications

2022 Grand Design Imagine XLS Overview

The 2022 Grand Design Imagine XLS 23LDE is the ideal travel trailer for those seeking adventure and comfort. With a length of 28 ft and a dry weight of 5,711 lbs, this unit is easy to tow and maneuver, perfect for weekend getaways or extended vacations. Accommodating up to 4 people, it features a well-appointed living space, a rear kitchen, and a luxurious walk-in shower. The powerful ducted air conditioning system ensures year-round comfort, while the solar-equipped design enhances off-grid capabilities. Experience the great outdoors without sacrificing the comforts of home. Schedule your tour today!

Premium Features & Highlights

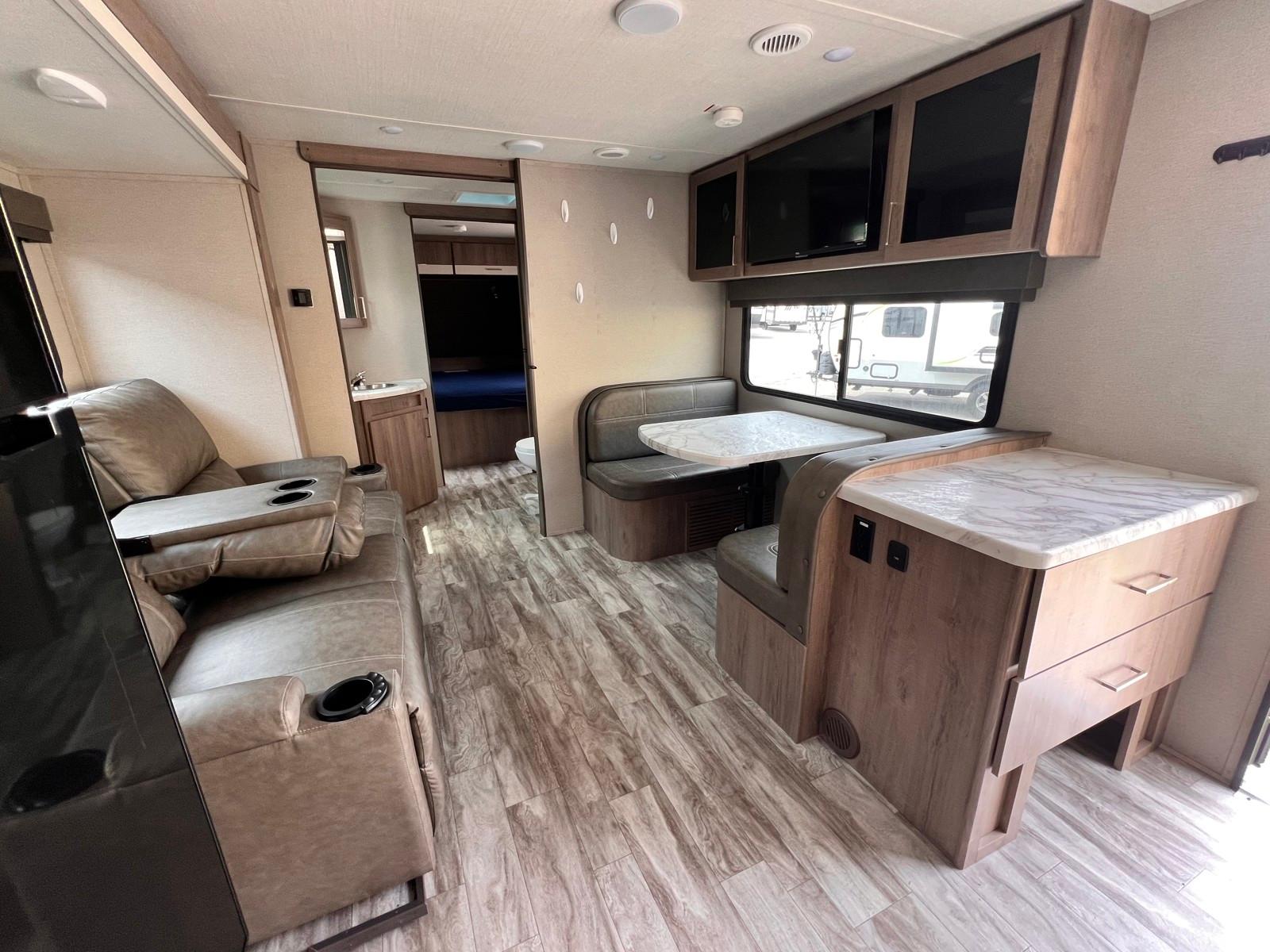

Spacious Interior Layout
15,000 BTU Air Conditioning for Year-Round Comfort
Solar Equipped for Enhanced Off-Grid Capability
Walk-In Shower for Comfort and Convenience
Easy Towing with a Dry Weight of 5,711 lbs
Select a category to view specs

Overview

Vehicle Identification & Details

9 specifications available

Category
Travel Trailer
Condition
used
Floorplan
23LDE
Make
Grand Design
Manufacturer
grand design
Model
Imagine XLS
Stock Number
UT28428
VIN
573TE2828N3428428
Year
2022

Size & Weight

Dimensions, Weight, Construction & Exterior

19 specifications available

Dry Weight
5,711 lbs
GVWR
6,995 lbs
Height Closed Ft
10.8
Length Closed Ft
28.4
Length
28.4 ft
Interior Height
6.5 ft
Width
8 ft
Awning Length Ft
20 ft
Awnings Count
1
Body Material
Gel-coated Fiberglass
Construction Type
Full Laminated Walls
Doors Count
2

Sleeping & Layout

Beds, Layout, Living & Comfort

16 specifications available

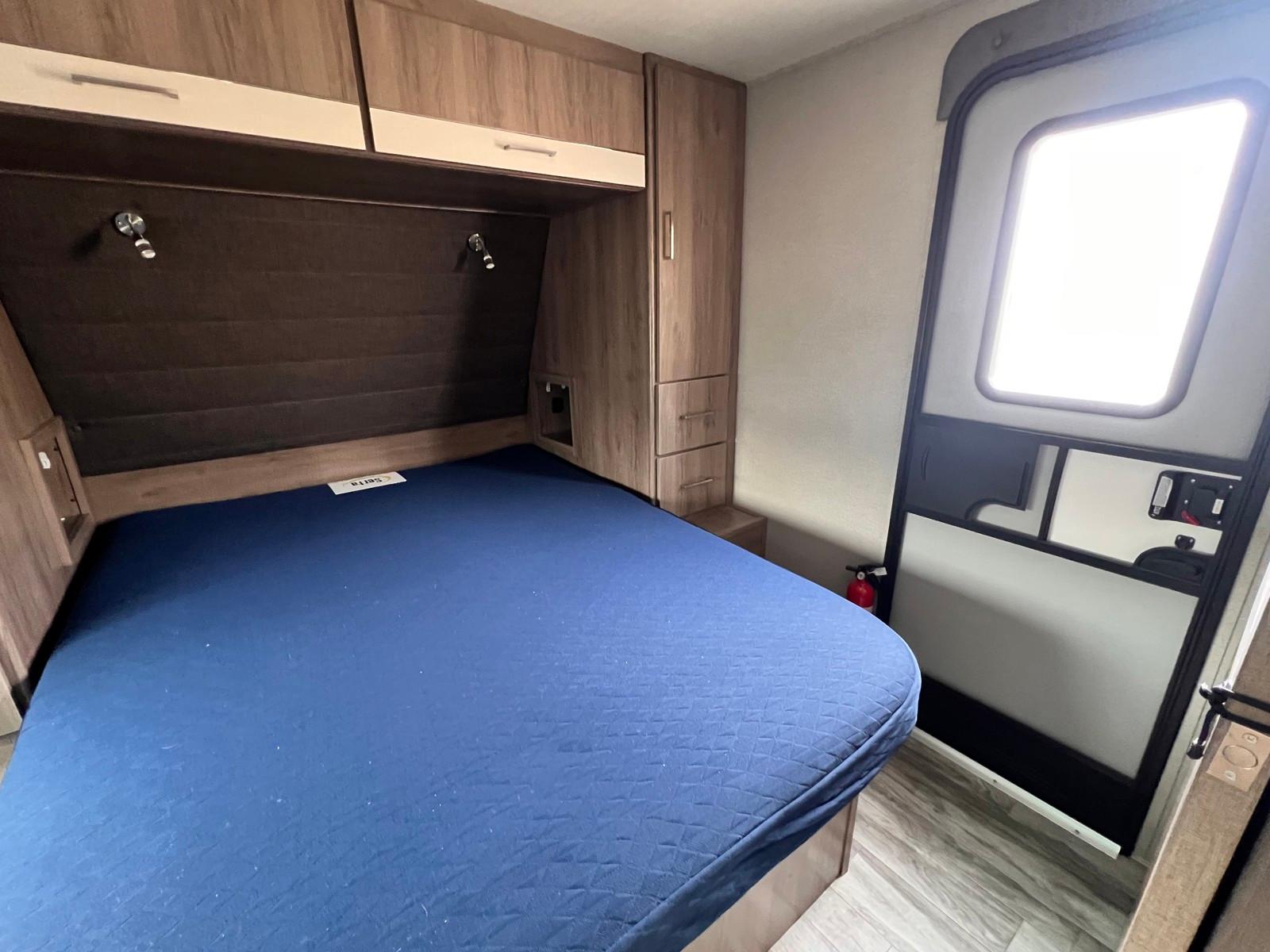

Available Beds
Murphy Queen
Bedroom Count
0
Bunk Beds Count
0
Convertible Beds Count
0
Double Beds Count
0
Full Beds Count
0
King Beds Count
0
Loft Beds Count
0
Primary Bedroom Location
Front
Murphy Beds Count
1
Private Bedroom
Yes
Queen Beds Count
1

Kitchen & Dining

Cooking, Dining & Appliances

7 specifications available

Kitchen Location
Rear
Oven
Yes
Stovetop Burners
3
Range Type
3-Burner with Oven
Refrigerator Power Mode
12V
Refrigerator Size
10 cu ft
Refrigerator Type
12V Refrigerator

Bathroom & Facilities

Comfort & Privacy

4 specifications available

Bathroom Location
Rear
Bathroom Type
Walk-Through
Bathrooms Count
1
Shower Type
Walk-In Shower

Water Systems

Tanks & Plumbing

9 specifications available

Black Water Capacity
37 gal
Black Water Tanks Count
1
Fresh Water Capacity
43 gal
Fresh Water Tanks Count
1
Gray Water Capacity
82
Gray Water Tanks Count
1
Has Tankless Water Heater
Yes
Water Heater Power Mode
Dual Mode (Gas/Electric)
Water Heater Type
Tankless

Power & Electrical

Electrical, Entertainment & Safety

4 specifications available

Solar Equipped
Yes
Electrical Service
30 amp
Televisions Count
1
Tv Info
LR LED HDTV

Climate Control

Heating & Cooling

6 specifications available

Ac Btu
15,000 BTU
Ac Type
Ducted
Air Conditioners Count
1
Air Conditioning
Ducted A/C
Heater Btu
25,000 BTU
Heater Type
Residential Ductless

* Vehicle specifications listed to the best of our knowledge. All specifications, features, and information are provided by the manufacturer. A&L RV Sales is not responsible for manufacturer defects, specification changes, or recalls. Buyers should verify all information directly with A&L RV Sales.
