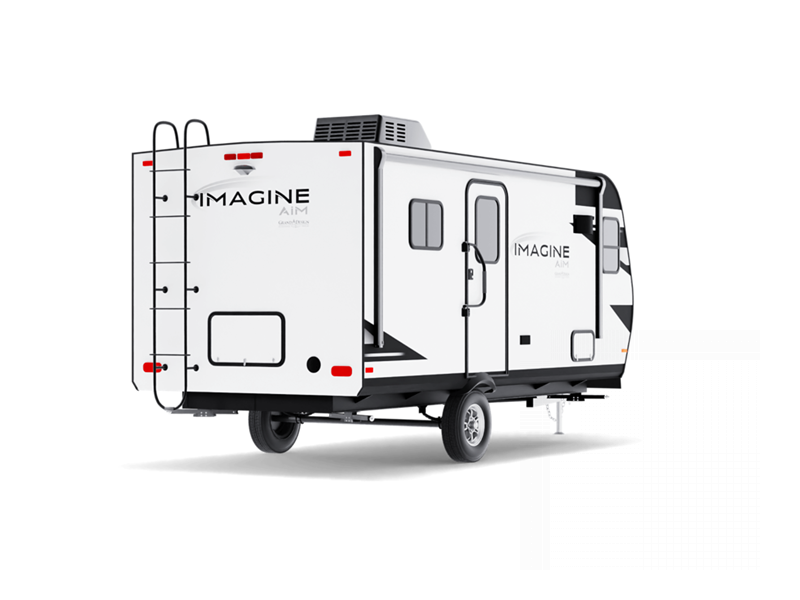

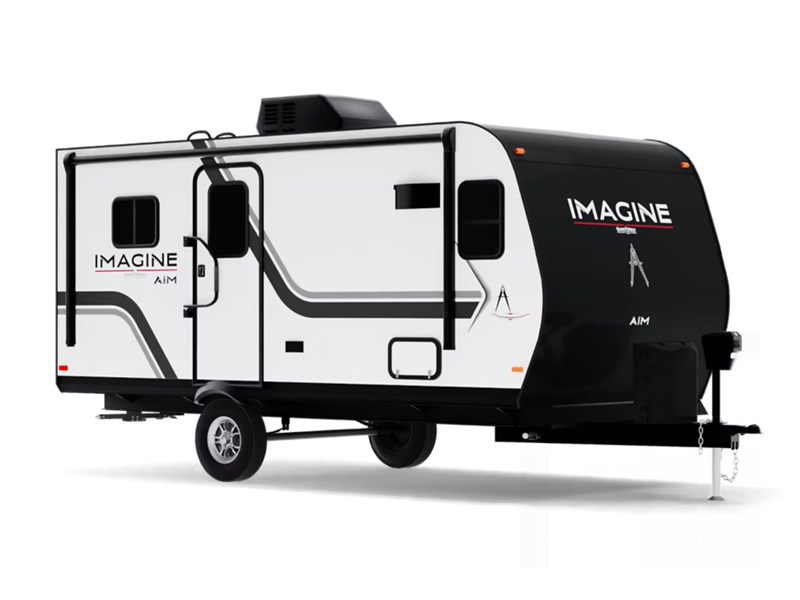

Grand Design Imagine AIM Travel Trailer RVs For Sale

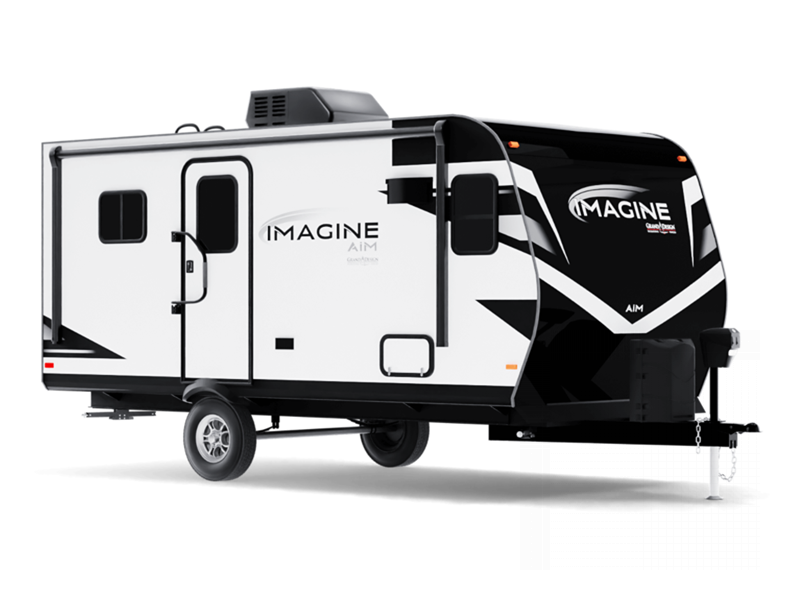

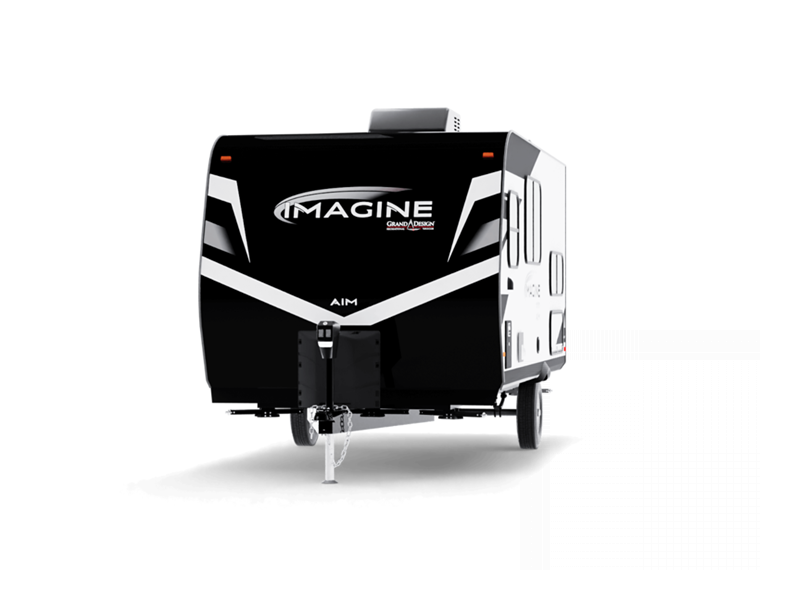

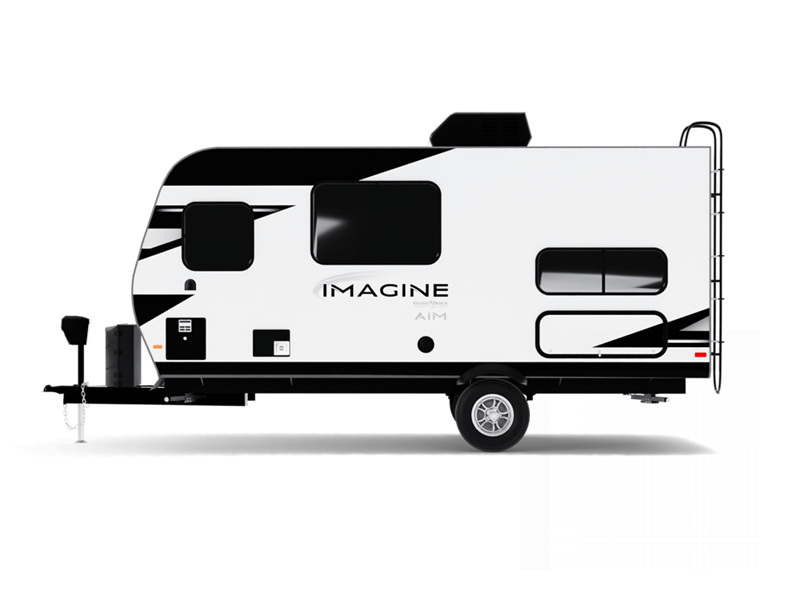

These Grand Design Imagine AIM travel trailers expand the lineup with weights starting under 3,600 lbs. With their light weight construction, you can haul them with even more of today's SUV's.
The gel coated fiberglass exterior is sure to turn heads at the campsite, and the exterior cooking griddle with a metal pullout drawer will come in handy. You will also love the four included packages, such as the AIM Solar Package with off-grid features and the AIM Four Seasons Protection Package to keep you comfortable all year long! There is even an optional AIM Enhancement Package for even more convenience!
Start imagining all that you can do with a Grand Design Imagine AIM travel trailer!
-
Imagine AIM 14MS
Grand Design Imagine AIM 14MS travel trailer highlights: Murphy Bed Slide Out ... more about Imagine AIM 14MS
Specifications
Sleeps 2 Slides 1 Length 17 ft 11 in Ext Width 8 ft Ext Height 10 ft 11 in Exterior Color 454 GVWR 4600 lbs Dry Weight 3826 lbs Fresh Water Capacity 37 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST225/75R15LRE Furnace BTU 20000 btu Available Beds Murphy Bed Refrigerator Type 12V Refrigerator Size 6.2 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 13500 btu TV Info LR High Def TV Awning Info 12' Adjustable Power with LED Lighting Axle Count 1 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine AIM 16BL
Grand Design Imagine AIM 16BL travel trailer highlights: Exterior Griddle ... more about Imagine AIM 16BL
Specifications
Sleeps 4 Slides 1 Length 19 ft 11 in Ext Width 8 ft Ext Height 10 ft 11 in Hitch Weight 406 lbs GVWR 5495 lbs Dry Weight 3976 lbs Fresh Water Capacity 37 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST225/75R15LRE Furnace BTU 20000 btu Number Of Bunks 2 Available Beds Murphy Refrigerator Type 12V Refrigerator Size 6.2 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 13500 btu TV Info LR High Def TV Awning Info 12' Adjustable Power with LED Lighting Axle Count 1 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine AIM 16ML
Grand Design Imagine AIM 16ML travel trailer highlights: Full Rear Bathroom ... more about Imagine AIM 16ML
Specifications
Sleeps 4 Slides 1 Length 20 ft Ext Width 8 ft Ext Height 10 ft 11 in Int Height 6 ft 6 in Hitch Weight 412 lbs GVWR 4795 lbs Dry Weight 3768 lbs Fresh Water Capacity 37 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST225/75R15LRE Furnace BTU 20000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 6.2 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 13500 btu TV Info LR High Def TV Awning Info 12' 6" Adjustable Power with LED Lighting Axle Count 1 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine AIM 15BH
Grand Design Imagine AIM 15BH travel trailer highlights: Flip-Top Bunk Front ... more about Imagine AIM 15BH
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Length 19 ft 11 in Ext Width 8 ft Ext Height 10 ft 11 in Int Height 6 ft 6 in Hitch Weight 425 lbs GVWR 4795 lbs Dry Weight 3560 lbs Fresh Water Capacity 37 gals Grey Water Capacity 74 gals Black Water Capacity 37 gals Tire Size ST225/75R15LRE Furnace BTU 20000 btu Number Of Bunks 1 Available Beds Queen Refrigerator Type 12V Refrigerator Size 6.2 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 13500 btu TV Info LR High Def TV Awning Info 14' Adjustable Power with LED Lighting Axle Count 1 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine AIM 15RB
Grand Design Imagine AIM 15RB travel trailer highlights: Murphy Bed Booth ... more about Imagine AIM 15RB
Have a question about this floorplan? Contact Us
Specifications
Sleeps 3 Length 19 ft 11 in Ext Width 8 ft Ext Height 10 ft 11 in Int Height 6 ft 6 in Hitch Weight 378 lbs GVWR 4795 lbs Dry Weight 3594 lbs Fresh Water Capacity 37 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST225/75R15LRE Furnace BTU 20000 btu Available Beds Murphy Refrigerator Type 12V Refrigerator Size 6.2 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 13500 btu TV Info LR High Def TV Awning Info 12' 6" Adjustable Power with LED Lighting Axle Count 1 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
-
Imagine AIM 18BH
Grand Design Imagine AIM 18BH travel trailer highlights: Bar Tabletop Dinette ... more about Imagine AIM 18BH
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 21 ft 11 in Ext Width 8 ft Ext Height 10 ft 11 in Int Height 6 ft 6 in Hitch Weight 466 lbs GVWR 5495 lbs Dry Weight 4064 lbs Fresh Water Capacity 37 gals Grey Water Capacity 45 gals Black Water Capacity 37 gals Tire Size ST225/75R15LRE Furnace BTU 20000 btu Number Of Bunks 2 Available Beds Murphy Refrigerator Type 12V Refrigerator Size 6.2 cu ft Convection Cooking Yes Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 20 lbs Water Heater Type On Demand Tankless AC BTU 13500 btu TV Info LR High Def TV Awning Info 15' Adjustable Power with LED Lights Axle Count 1 Number of LP Tanks 2 Shower Type Walk-In Shower Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
Imagine AIM Features:
Standard Features
Exterior
- Backup Camera Prep
- 80% Tint Radius Safety Glass Windows
- 20# LP Bottles (2) w/Level Gauges
- Radius Entry Door
- High-Capacity Water Pump
- Battery Kill Switch (Pass Thru)
- Extra Large 2” Fresh Water Drain Valve
- Oversized Tank Capacities
- Dedicated Sewer Hose Carrier
- Universal Docking Station
- Spare Tire and Carrier
- Front Rock Guard
- Accessory Hitch Receiver
- Exterior Cooking Griddle w/ Metal Pullout Drawer
- Power Tongue Jack
- Tuff-Ply Pass Thru Flooring
Construction

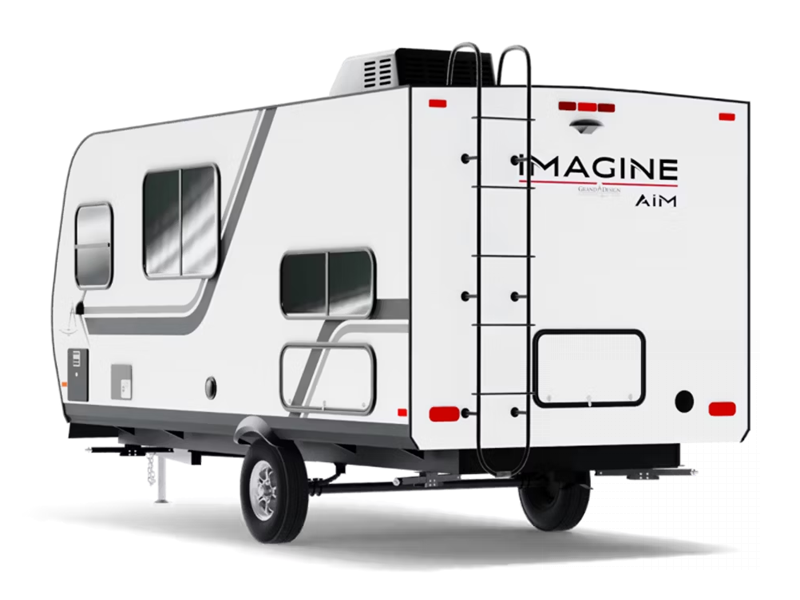

- Gel Coated Fiberglass Exterior
- One-Piece Roof Membrane with Limited Lifetime Warranty
- Easy Access Low Point Drain Valves
- Friction Hinge Entry Door
- Magnetic Storage Door Catches
- Laminated Aluminum Framed Rear Wall (R-7)
- Laminated Aluminum Framed Side Walls (R-7)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
- Laminated Aluminum Framed Main Floor (R-30)
- 5" Radius Wood Framed Roof (R-40)
- Heated and Enclosed Underbelly with Suspended Tanks
- Designated Heat Duct to Subfloor
- High Density Roof Insulation with Attic Vent
- Moisture Barrier Floor Enclosure
- Double Insulated Roof and Front Wall
- Heated and Enclosed Dump Valves
Running Gear
- Aluminum Rims
Frame & Chassis
- Power Tongue Jack

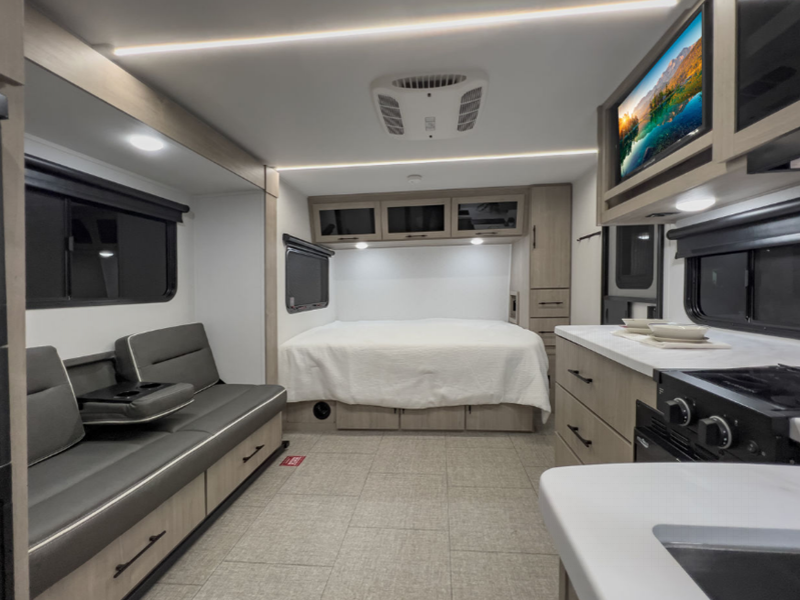

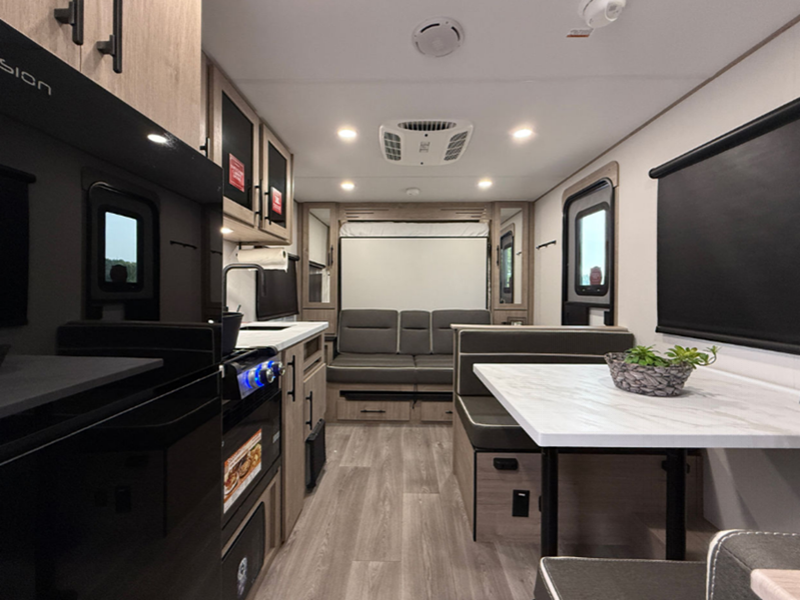

Interior
- Solid Drawer Fronts
- Solid Core Cabinet Stiles
- Pre-Drilled and Screwed Face Frames

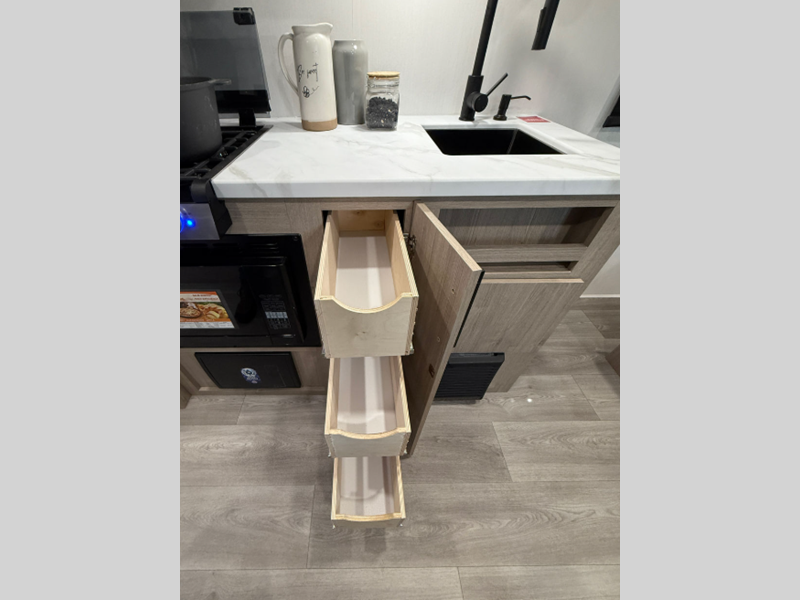

- Ball Bearing Full Extension Drawer Glides
- Large Panoramic Window
- 78" Interior Ceiling

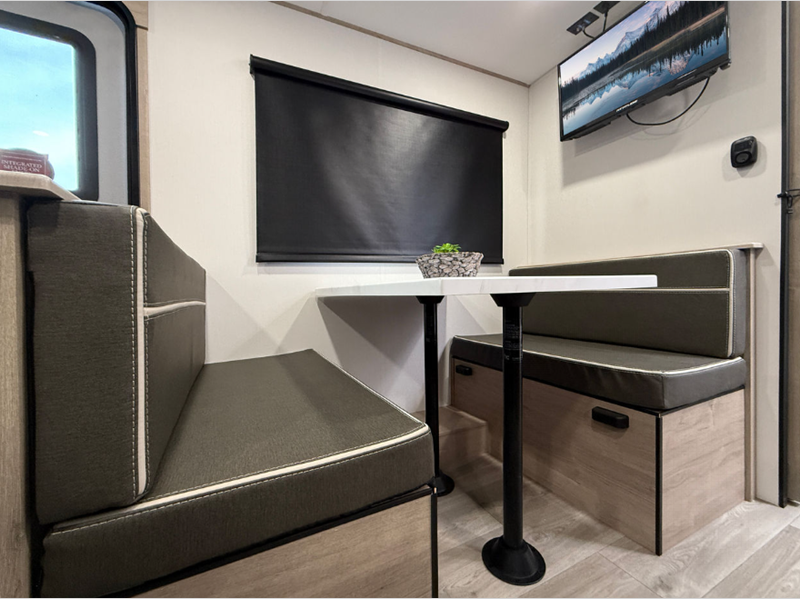

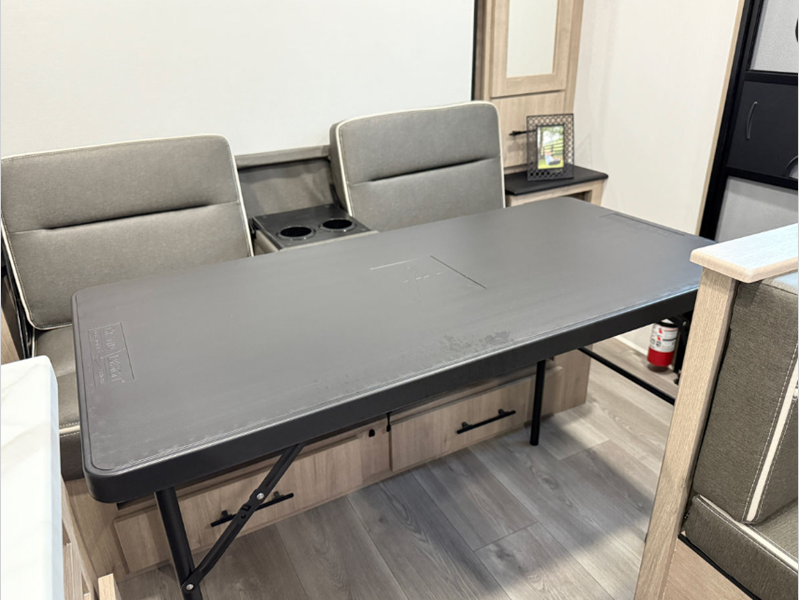

- Telescoping Dinette Table
- Residential Cabinetry
- Premium Window Treatments

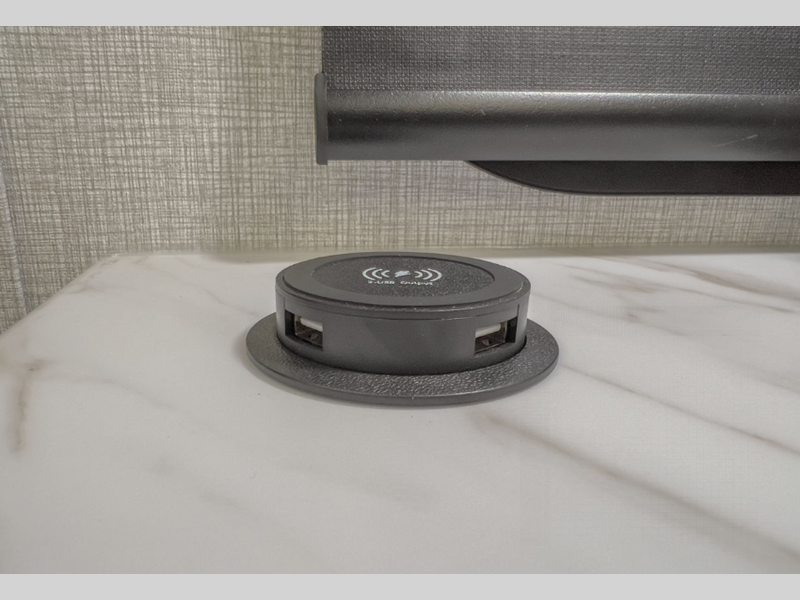

- Wireless Pop-Up Charger w/2 USB Outlets

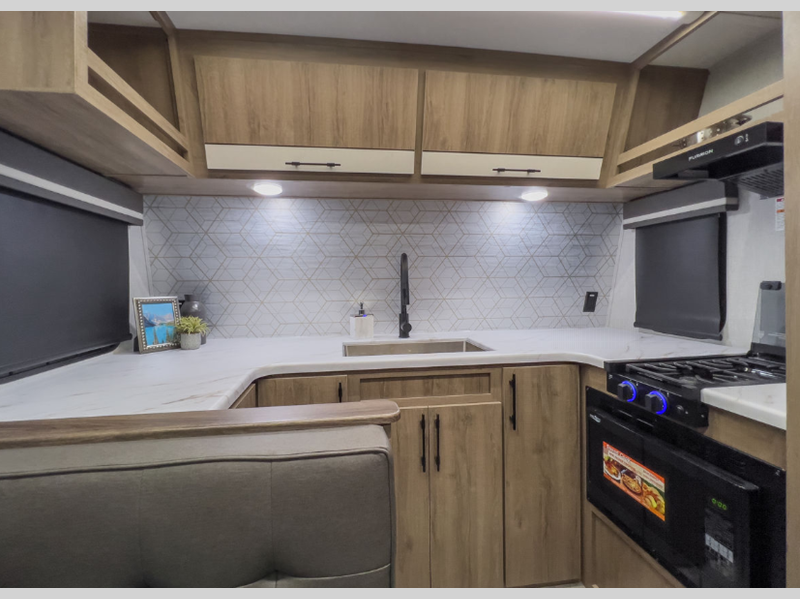

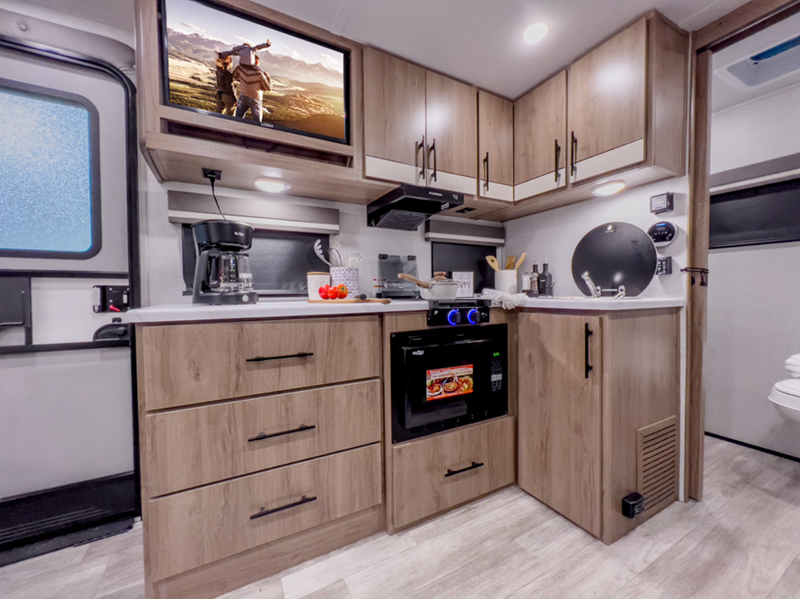

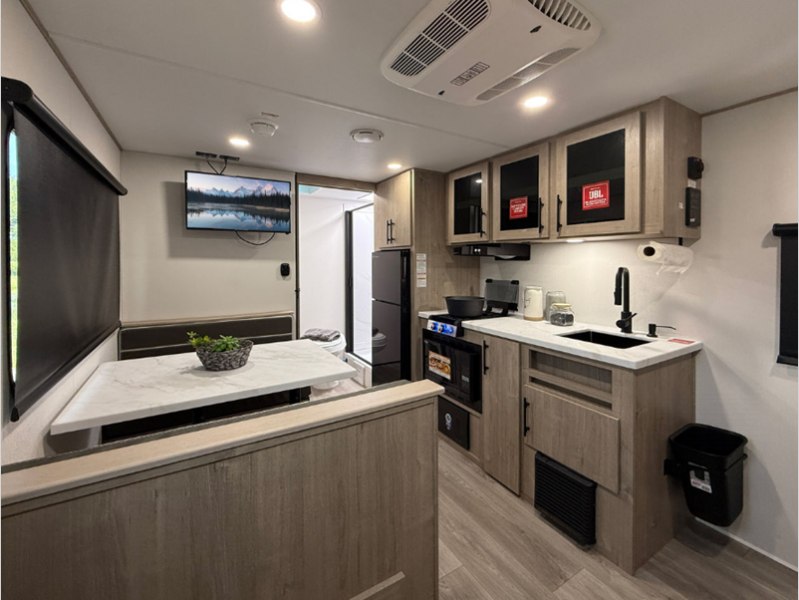

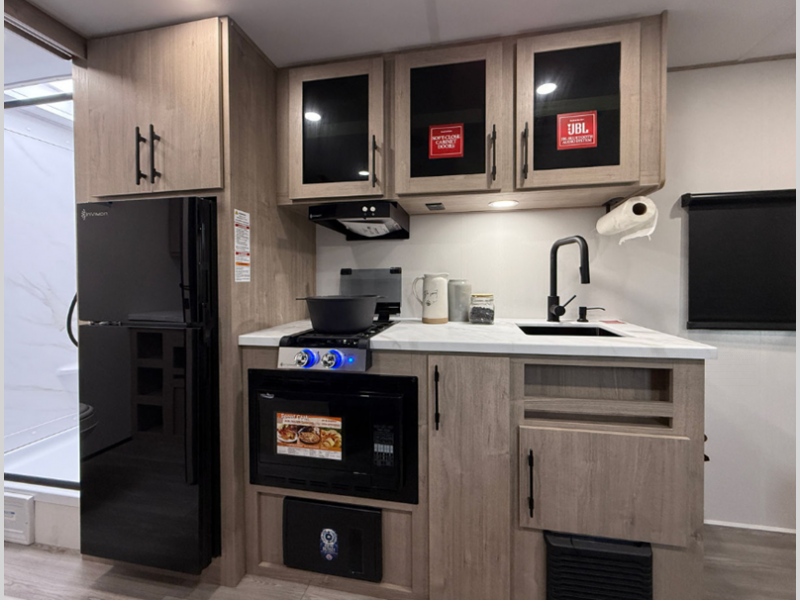

Kitchen
- Residential Countertops
- 2-Burner Cook Top
- Stainless Steel Sink
Electrical
- 6" Coiled Break-away Cable
- Adjustable Power Awning w/ LED Lights
- LED Interior Lighting
- 30 AMP Service
- Detachable Power Cord
- Motion Sensor Entry Lighting (LED)
- Compass Connect
- Tire Linc TPMS Prep
- 200W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 30 AMP Charge Controller
HVAC
- Cabinet Mounted Heat Ducts
- High Efficiency AC System
- High Capacity Furnace
- Residential (Ductless) Heating System Throughout
Plumbing
- On-Demand Tankless Water Heater
- Black Tank Flush
- Oversized Holding Tanks

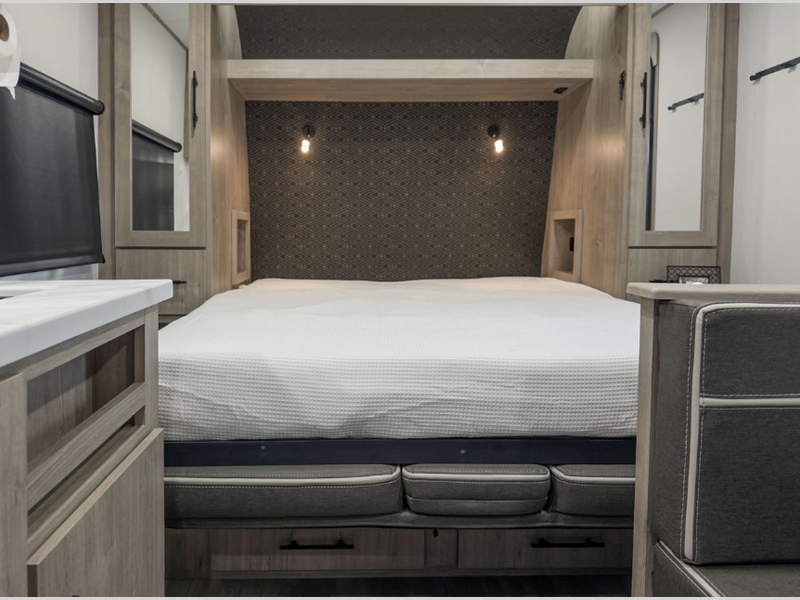

Bedroom
- Residential Bedspread

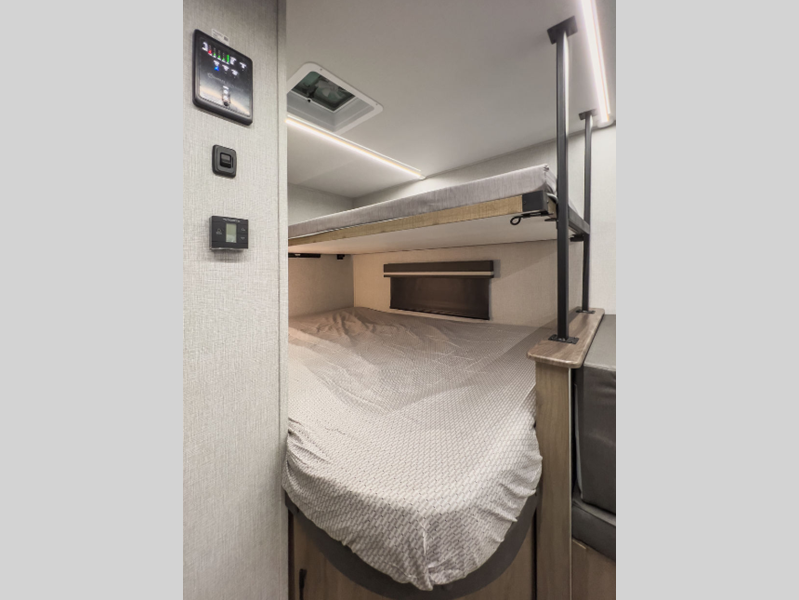

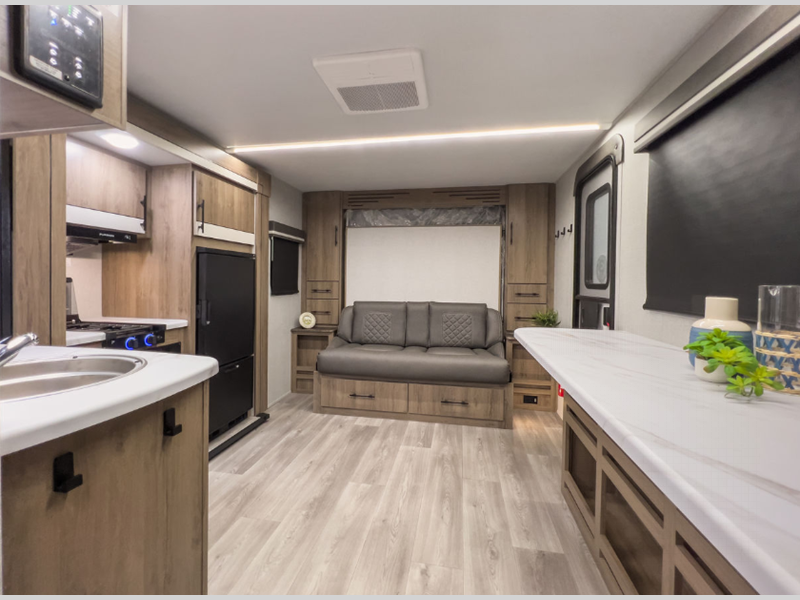

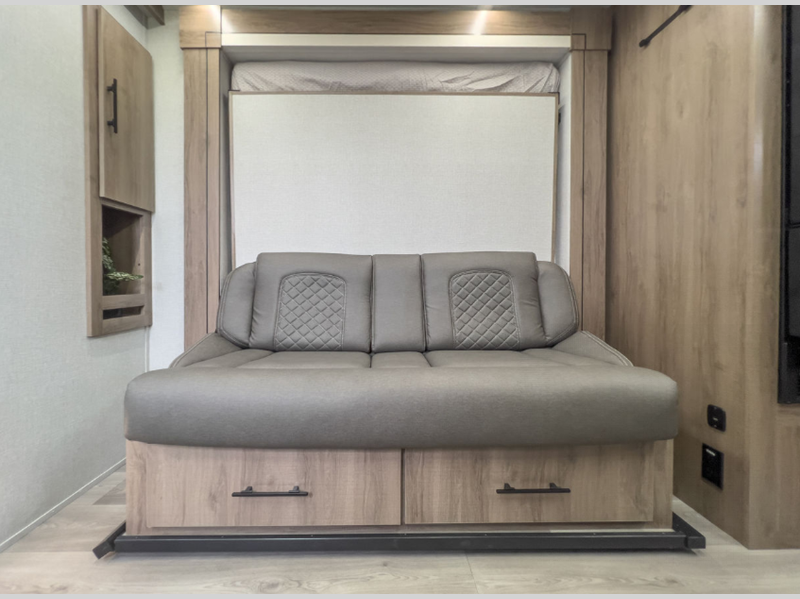

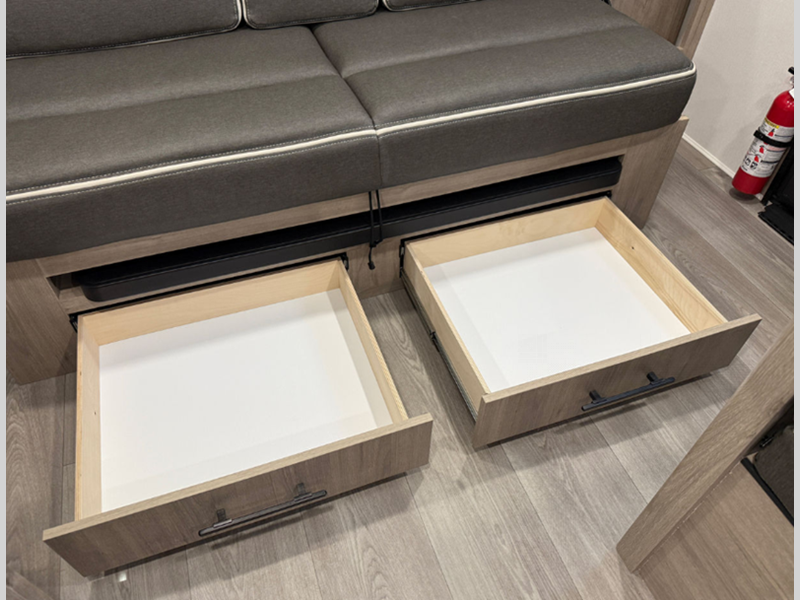

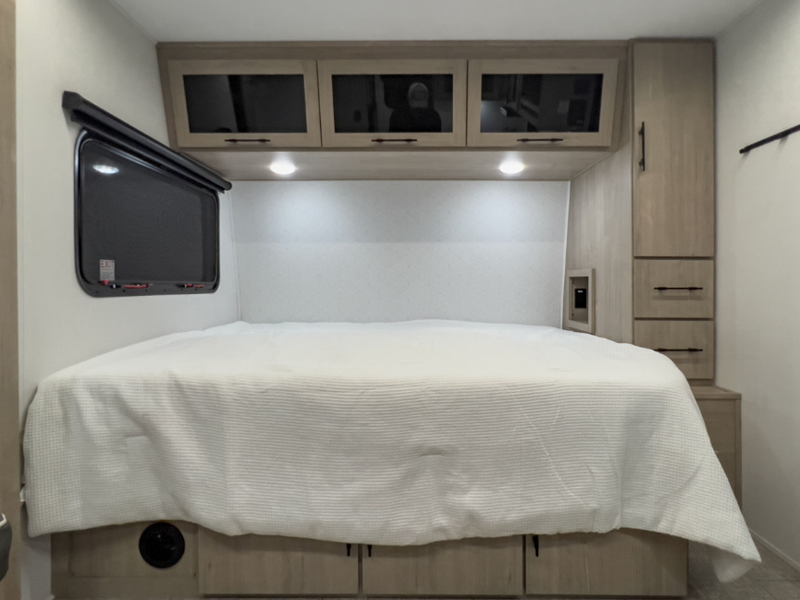

- Queen Murphy Bed w/ Storage Drawers (14MS, 15RB, 16BL, 18BH)

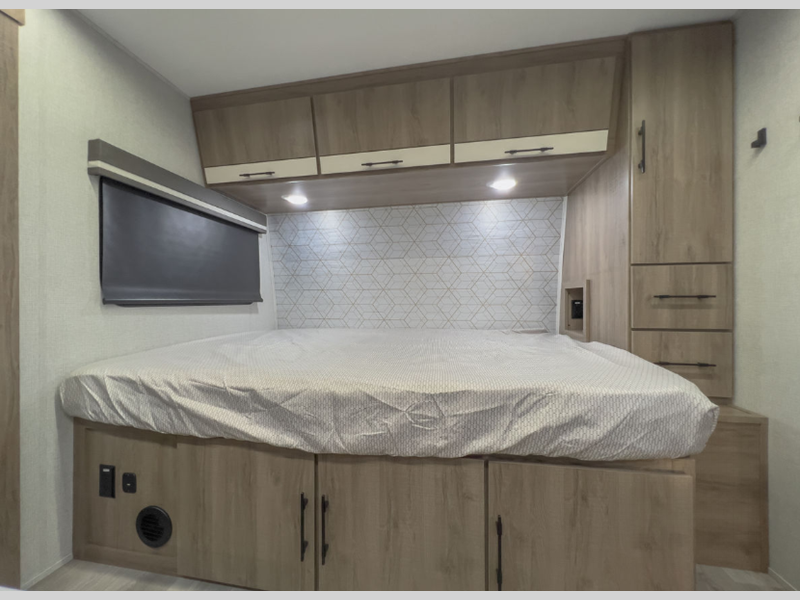

- Master Suite with Queen Bed (15BH & 16ML)

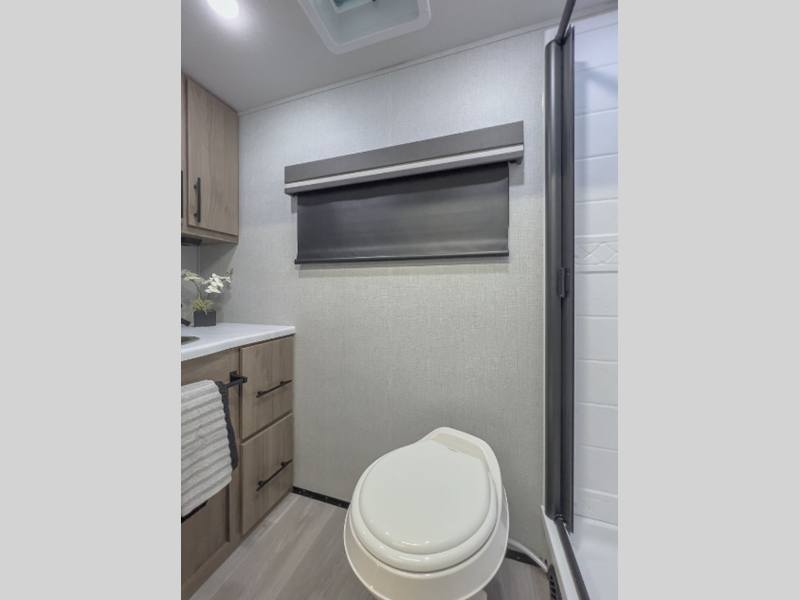

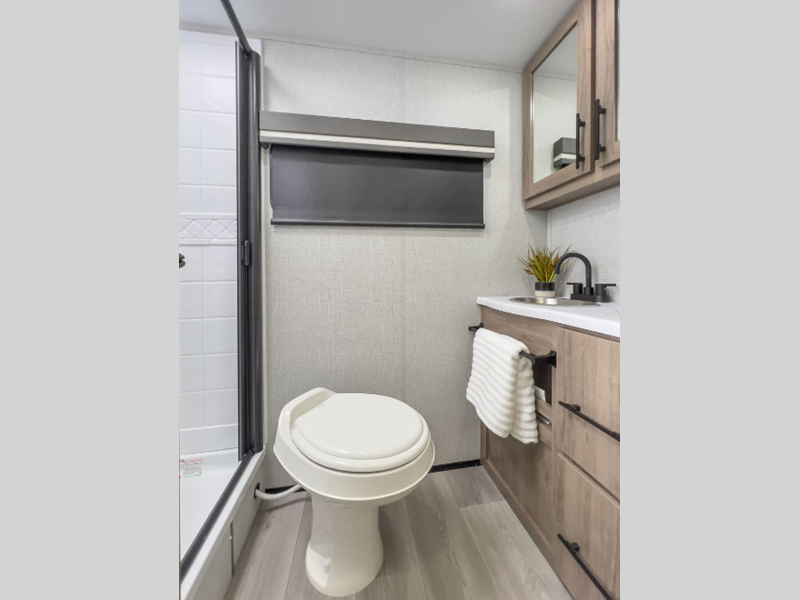

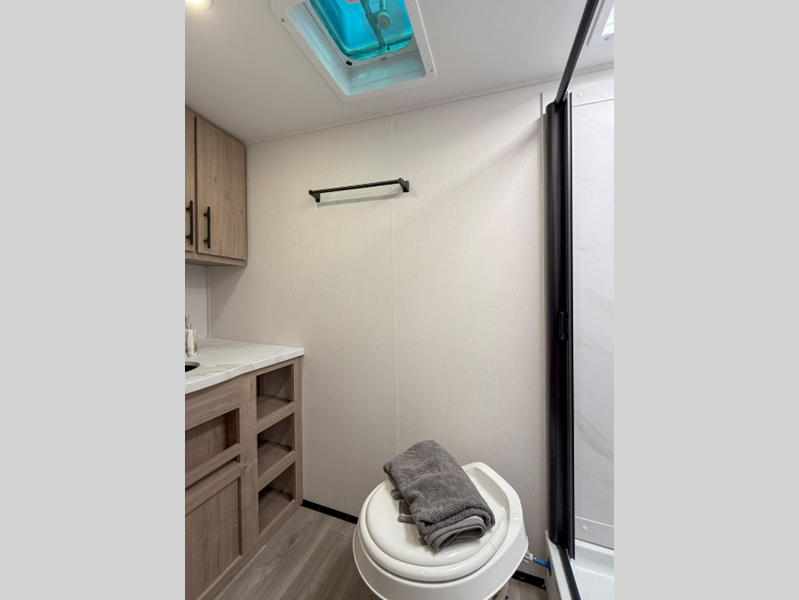

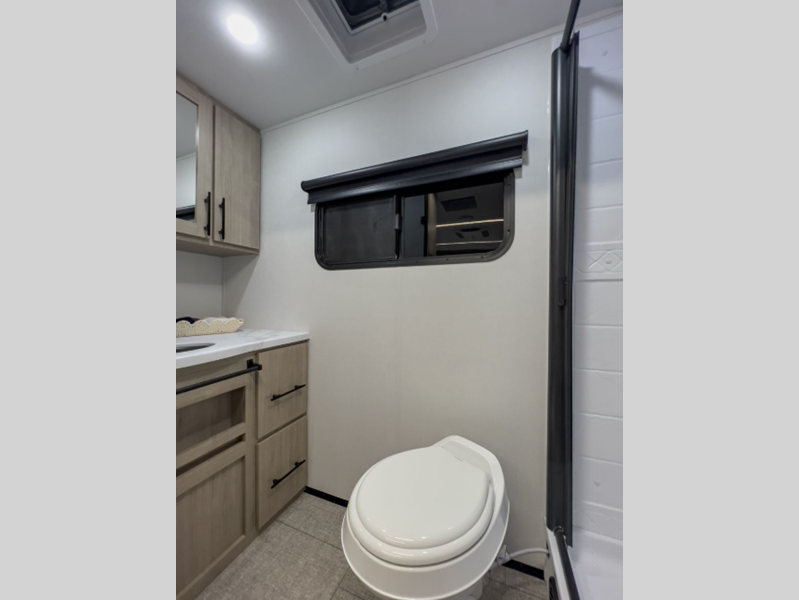

Bathroom

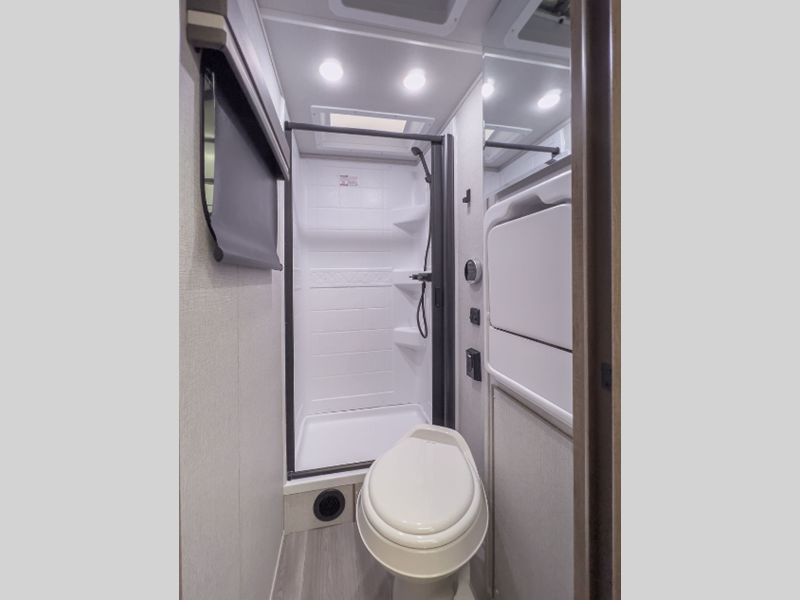

- Residential Walk-In Shower
- Skylight Over Shower
- Power Vent Fan
Appliance
- Convection Microwave
- 12V Refrigerator
Electronics
- Hi Definition LED TV
AIM Peace of Mind Package
- Aluminum Step Above Entry Steps
- Dedicated Sewer Hose Carrier
- Residential Cabinetry
- Universal Docking Station
- On-Demand Tankless Water Heater
- Black Tank Flush
- Aluminum Rims
- Spare Tire and Carrier
- Front Rock Guard
- Accessory Hitch Receiver
- Premium Window Treatments
- 6" Coiled Break-away Cable
- Oversized Holding Tanks
- Convection Microwave
- Exterior Cooking Griddle w/Metal Pullout Drawer
- Tuff-Ply Pass Through Flooring
- Dual LP Tank Monitors
AIM Ultimate Power Package
- Adjustable Power Awning w/ LED Lights
- LED Interior Lighting
- 30 AMP Service
- Hi Definition LED TV
- Detachable Power Cord
- High Efficiency AC System
- Motion Sensor Entry Lighting (LED)
- Power Tongue Jack
- Compass Connect
- Tire Linc TPMS Prep
- Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
- Wireless Pop-Up Charger w/Dual USB Ports
AIM Four Season Protection Package
- High Capacity Furnace
- Heated and Enclosed Underbelly with Suspended Tanks
- Designated Heat Duct to Subfloor
- High Density Roof Insulation with Attic Vent
- Moisture Barrier Floor Enclosure
- Residential (Ductless) Heating System Throughout
- Double Insulated Roof and Front Wall
- Heated and Enclosed Dump Valves
AIM Solar Package
- 200W Roof Mounted Solar Panel
- Roof Mounted Quick Connect Plugs
- 30 AMP Charge Controller
- 12V Refrigerator
AIM Enhancement Package (Optional)
- 2nd Roof Mounted 200W Solar Panel & 2000W Inverter
- Untamed Terrain 235/75R15 Tire Assembly
- Tire Linc Tire Pressure Monitoring System
- Factory Installed Backup Camera w/ Monitor
- MAXAIRE Power Vent w/ Rain Sensor
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
